YT Series 4color Cast Iron Flexographic printing machine YT 6600-61600 Flexo printing machine manufacturer from China Rui'an Huateng Packing Machinery Co.,Ltd.

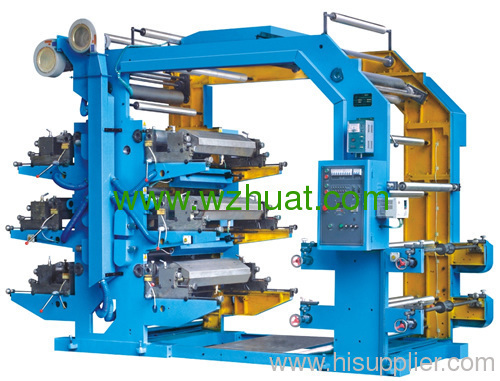

YT Series 4color Cast Iron Flexographic printing machine

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YT 6600-61600 Flexo printin...

Production Capacity: 15sets/month

Delivery Date: 40 working days

Type: Flexographic Printer

Usage: Paper printing, plastic fil...

printing colors:: 2, 4, 6, or 8colors

Pring plate lift:: hydraulic pressure system

Means of Transport: Ocean

Packing: wooden box

Plate: Letterpress

Color & Page: Two Colors

Brand Name: HUATENG

high technology: Ceramic anilox rolls, doctor blades,Two-way diaphragm pumps: Ceramic anilox rolls, docto...

letterpress printer
flexographic printing machine
2 color printing machine
paper,nonwoven fabric, plastic fillm printer,
high quality printer

6 color Flexographic Film Printer/flexo printer/film printing machine/film printer/flexo printing/plastic flexo printer/printing

Application:
-----------------------------------
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Main Technical Parameter:
----------------------------------------------------

Main Technical Parameter:

TYPE
YT-61000-6color-flexo press
Max.width of material
1000mm
Max.printing width
960mm
Max.printing speed
50m/min
Max.Mechanical speed
60m/min
Max. unwinding and rewinding diameter of Roll Material
Φ450mm
Internal Diameter of Roll Core
φ76mm
Cylinder diameter
φ400mm(Customer can order other sizes)
Rang of Repeat Printing Length
191-914mm
Plate Thickness(Bothside adhesive included)
2.38mm
Accuracy of Registration
Vertical
+/-0.25mm
Horizontal
Tension control range
0-25kg
Heating Power
18kw
Main motor power
24kw
Total power
42kw
Weight of Machine(film packing dimension)
5000kg
Machine dimension(L x W x H)(film packing dimension)
L4300×W2100×H2950mm
Wooden packing Dimension
L4450×W2250×H3100mm

Suitable printing substrate:	PVC:35~70μm
	OPP:20~70μm
	BOPP:20~60μm
	PE:35~100μm
	NY:20~50μm
	PET:20~60μm
	CPP:20~60μm
	PAPER:20~150g/㎡
	NON-WOVEN FABRIC:20-120GSM

Principle picture:
-----------------------------------------

Options:

1>Ceramic anilox roller
2> Resin (cliche) making machine for flexo pritning machine

Printing sample:
------------------------------------------------

Non woven fabric

Paper:
-------------------
