YT High speed 4 colors Flexo Printing Machine YT Series manufacturer from China Rui'an Huateng Packing Machinery Co.,Ltd.

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: YT Series

Packing: wooden box

Plate: Letterpress

Color & Page: Two Colors

Brand Name: HUATENG

high technology: Ceramic anilox rolls, doctor blades,Two-way diaphragm pumps: Ceramic anilox rolls, docto...

Production Capacity: 20sets/month

Delivery Date: 30 working days

Type: Flexographic Printer

Usage: Paper printing, plastic fil...

printing colors:: 2, 4, 6, or 8colors

Pring plate lift:: hydraulic pressure system

letterpress printer
flexographic printing machine
2 color printing machine
paper,nonwoven fabric, plastic fillm printer,
high quality printer

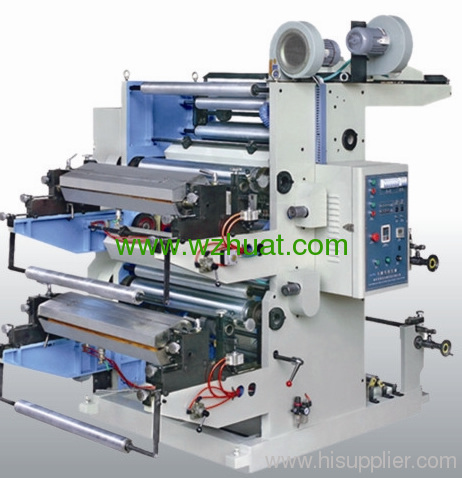

YT High speed 4 colors Flexo Printing Machine
------------------------------------------------------------------------------------------------

l Hydraulic lift control printing roller

l Ceramic Anilox roller (Japan brand) 4pcs

l Closed type doctor blades (Switzerland Brand) 4pcs

l Two-way diaphragm pumps

l Automatic tension controller (Taiwan Brand)

l Automatic EPC device (Edge position controller)

l 27inch Static screen (Inspecting pictures)

l High speed: 90m/min

Acceptable printing material

LDPE : 28 ~ 100μm LLDPE : 30 ~ 100μm HDPE : 25 ~ 100μm

PVC : 25 ~ 70μm CPP : 20 ~ 60μm PP : 23 ~ 65μm

NY : 20 ~ 50μm PETP : 16 ~ 60μm OPP : 18 ~ 70μm

BOPP : 17 ~ 60μm OPA: 20 ~ 60μm Plating film : 30 ~ 80μm

Aluminum: 25 ~ 80μm Cellophane: 30 ~ 150g/m²Paper: 30 ~ 150g/m²Wrapping paper: 30 ~ 150g/m² Non-woven

Printing width	600mm - 1600mm
Printing material	PVC,OPP,BOPP,PE,
Printing material	NY,PET,CPP, Paper
Printing color	at your own choice+ 2 special color
Printing length	7.5"~40"(190mm~1000mm)/7.5"~50"(190mm~1270mm)
Printing plate lifting system	Pneumatic press control
Machanical speed	100m/min
Printing speed	10~90/min
Register precision	Longitude:±0.15mm Transverse:±0.15mm
Rewinder/Unwinder DIA	Φ1000mm

Printing width	600mm	800mm	1000mm	1200mm	1400mm	1600mm
Material feeding width	700mm	900mm	1100mm	1300mm	1500mm	1700mm
Master motor	3.7Kw	3.7Kw	3.7Kw	5.5Kw	5.5Kw	5.5Kw
Rewinder motor	1.5Kw	1.5Kw	1.5Kw	2.2Kw	2.2Kw	2.2Kw
Electrical heater	18Kw	22Kw	30Kw	30Kw	38Kw	38Kw
Blower of heater	3Kw	3Kw	5Kw	5Kw	5Kw	5Kw
Blower of nature wind	1.1Kw	1.1Kw	1.5Kw	1.5Kw	1.5Kw	1.5Kw
Inking motor	200W	200W	200W	200W	200W	200W
Master frequency converter	3.7Kw	3.7Kw	3.7Kw	5.5Kw	5.5Kw	5.5Kw
Powder brakes	5Kg	5Kg	10Kg	10Kg	10Kg	10Kg
