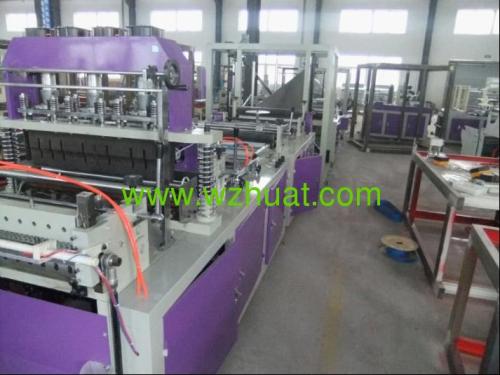

This machine is electro-mechanical integrative, once-through fully automatic forming, touch screen operation is applied, photo-electric trace, computerized deviation rectifying function, hence accuracy and smooth. Such automatic devices as slotting device, punching device and metering device are equipped. Finished products are produced at fast speed, in high efficiency, and in firm appearance after welding. This machinery is an optical choice for the nonwoven bag making enterprise and businessmen devoted to the production of nonwoven environment-friendly bags.

1. Local touch-screen computer configured to operate;
2. Arbitrarily set a long-step electric track, a smooth, lost support from the standard parking
3. Feed off automatic shutdown, auto-punch;
4. While at the end of the roll-ultrasonic welding, in particular, solid, smooth;
5. Automatic temperature and automatically correcting leaks;
6. While cutting edge automatic closure, automatic nesting.

Type	ONL-A600	ONL-A700	ONL-A800
Production speed	20-100pcs/min	20-100pcs/min	20-100pcs/min
Bag width	100-800mm	100-800mm	100-800mm
Bag length	200-480mm	200-580mm	200-680mm
Nowoven fabric specification(G. S. M)	30-100	30-100	30-100
Power supply	380V/220v	380V/220v	380V/220v
Total power	11KW	13KW	15KW
Overall size	6800× 1650× 1800mm	7800× 1650× 1800mm	8000× 1800× 2000mm
