co extrusion film blowing machine

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: MSJ55-GS1300-1800
Delivery Date: 30days
Automatic Grade: Automatic
Usage: Outer
Brand Name: HUATENG
Certificate: CE,ISO
Blow Moulding Type: Extrusion Blow Moulding
Condition: New
Layers: 3-5layers
haul-off: rotary traction system
Packing: wooden
Processing: Packaging Line
Type: General
Packaging: Plastic
Model Number: MSJ55-GS1300-1800
Application: Film
Automatic: Yes
Material: LDPE,HDPE,MLLDPE, EVA etc.
Extusion: Co-extrusion

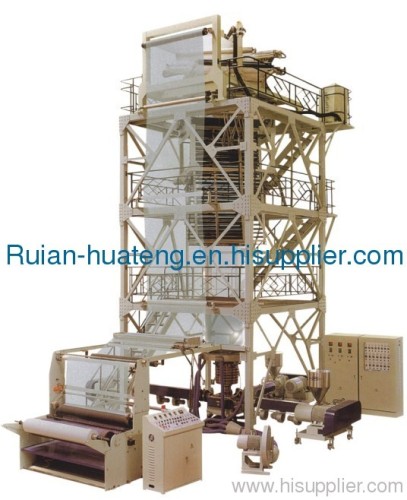

3 Layers Co-extrusion Film Blowing Machine
1)IBC, horizontal+/-180
2)Auto winder
3)up and down bubble fixer
4)auto loader


Three Layers Co-extrusion Film Blowing Machine Set (IBC Film Tube Inner Cooling System):

Characteristics:

1.die head is layer type spiral mandrel, continuous 3600 rotation.
2.Screen pack changer design is   reliable, safe in operation and change the fitter
screen easier.
3.Various functional parts may be installed to the lies.,such as length counting
   device, vertical cutting device, cooling water row pipe, film spreading roller,
   scrap collecting device.
Use:
Common-extruding Rotary Die Film Blowing Machine are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
Common-extruding Rotary Die Film Blowing Machine is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm
in the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain,anti-rost, insulation oxygen,oil
resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding,salt vegetables, fresh milk, drink.
Main Technical Variables
Model
3SJ-G1000
3SJ-G12003SJ-G1500
Screw Diameter55×2   60×160×2   65×165×2   70×1
Screw Ratio L/D28:128:128:1
Screw Speed15-150r/min15-150r/min15-150r/min
Main Motor Power15Kw×2 18.5Kw×118.5Kw×2 22Kw×122Kw×2 30Kw×1
Extrusion Output(Single)50kg/h80kg/h100kg/h
Range of Die150 200200   250×1250   300×1
Single-sided Thickness of Film0.01-0.10mm0.01-0.10mm0.01-0.10mm
Max. Folding Width of Film1000mm1200mm1500mm
Electric Total Capacity76Kw88Kw102Kw
Overall Dimension6600×4100×5000mm6800×4300×6000mm7000×4800×7500mm
Weight of Machine4T5T6T

We are China Three-layer Film Blowing Machine manufacturer offer best Three-layer Film Blowing Machine OEM, ODM,service.
