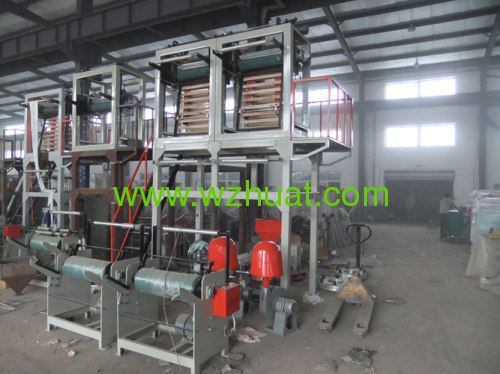

High output Single screw Double head film blowing machine

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SJ60-FM700

Packing: film packing

Processing: Packaging Line

Type: General

Packaging: Plastic

Certificate: CE,ISO9002,SGS

Production Capacity: 20sets/month

Delivery Date: 30 working days

Automatic Grade: Automatic

Usage: Outer

Brand Name: HUATENG

Export Area: North America, South Americ...

pe double head film blowing machine
for hdpe/ldpe material
pe single screw film extrusion machine
can used to produce hdpe/ldpe shopping bags

Characteristics

Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance,Scientifically designed,this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.

USE

This machine set is used for blowing low density polyethylene(LDPE) and high density Polyethylene(HDPE)plastic film to make various and flat-rimbags which have been widely used for packing in the food industry,garment industry and textile industry,etc.

Model	SJ60-FM700
screw diameter	Φ60
screw ratio L/D	28:1
screw speed	15-100r/min
main motor power	22kw
extrusion output	65kg/h
range of die	Φ80×2
single-sided thickness of film	0.008-0.10mm
max folding width of film	600mm
electric total capacity	44kw
overall dimension	4000×3500×4200
weight of machine	3.8T
