PE Double-color Film Blowing Machine

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: SJ45X2
Production Capacity: 20sets/month
Delivery Date: 30 working days
Type: General
Packaging: Plastic
Certificate:: CE,ISO9002,SGS
Means of Transport: Ocean
Packing: wooden
Processing: Packaging Line
Usage: Outer
Exported to:: East Europe, North America,...

double color film blowing machine
pe film extrusion machine
strip color film extrusion machine
strip color film making machine
film blowing mc


PE Double-color Film Blowing Machine
--------------------------------------------------------------------------




Characteristics:
----------------------------------------------------

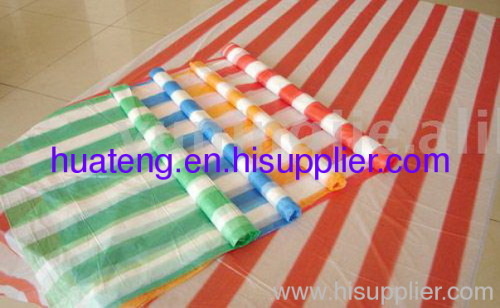

It is used for blowing various low density polyethylene (LDPE) and high density polyethylene(HDPE) color striped plastic film, etc. Which are widely used for packing food, fruit, garments, textile, daily necessities and other civil and industrial products. The cylinder and the screw stem of Model SJ-45D×2 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. 600 auxiliary machine can be freely adjusted within the limits of 600mm according to the technological requirements of different materials, and has been fitted with a plug-in plate mechanism for making vest bag. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Main Technical Variables:

Model
45×2
50×2
55×2
Diameter of Screw
45×2
45×2
55×2
Max. Width of Folded Film(mm)
100-600
200-800
300-1000
Single-face Thickness of Film(mm)
0.01-0.10
0.01-0.10
0.01-0.10
Max. Extrusion(kg/h)
35
50
65
L/D
26:1
26:1
26:1
Power of Main Motor(kw)
15
18.5
22
Power of Traction Motor(kw)
1.1
1.1
1.5
Heating Power(kw)
15
18
25
Overall Dimensions(mm)
4800×1900×4100
5500×2100×4700
6500×2300×4900
Weight(T)
2T
2.5T
3T

We are China double color film blowing machine manufacturer offer best double color film blowing machine OEM, ODM,service.







optional device:
---------------------------------------------------------
